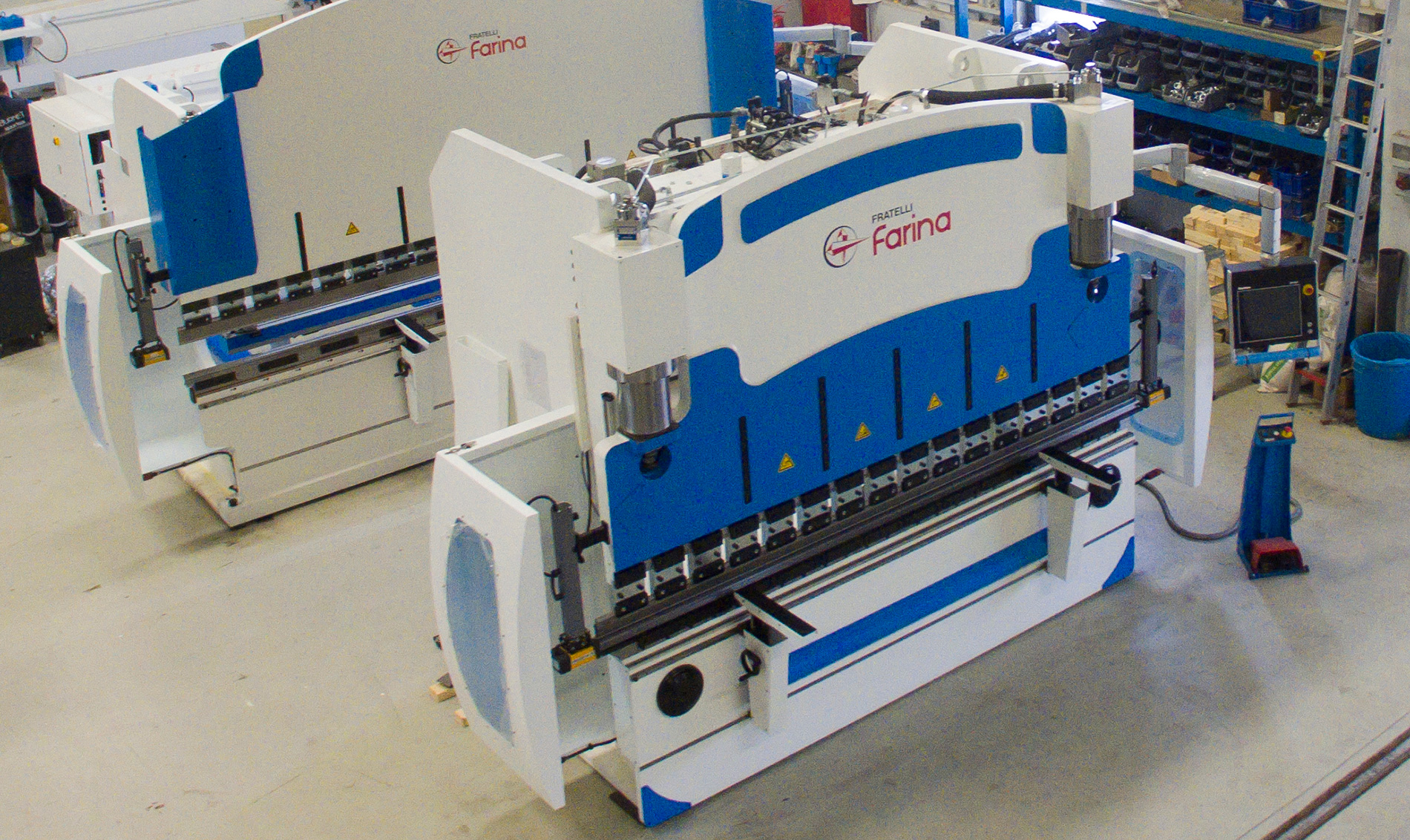

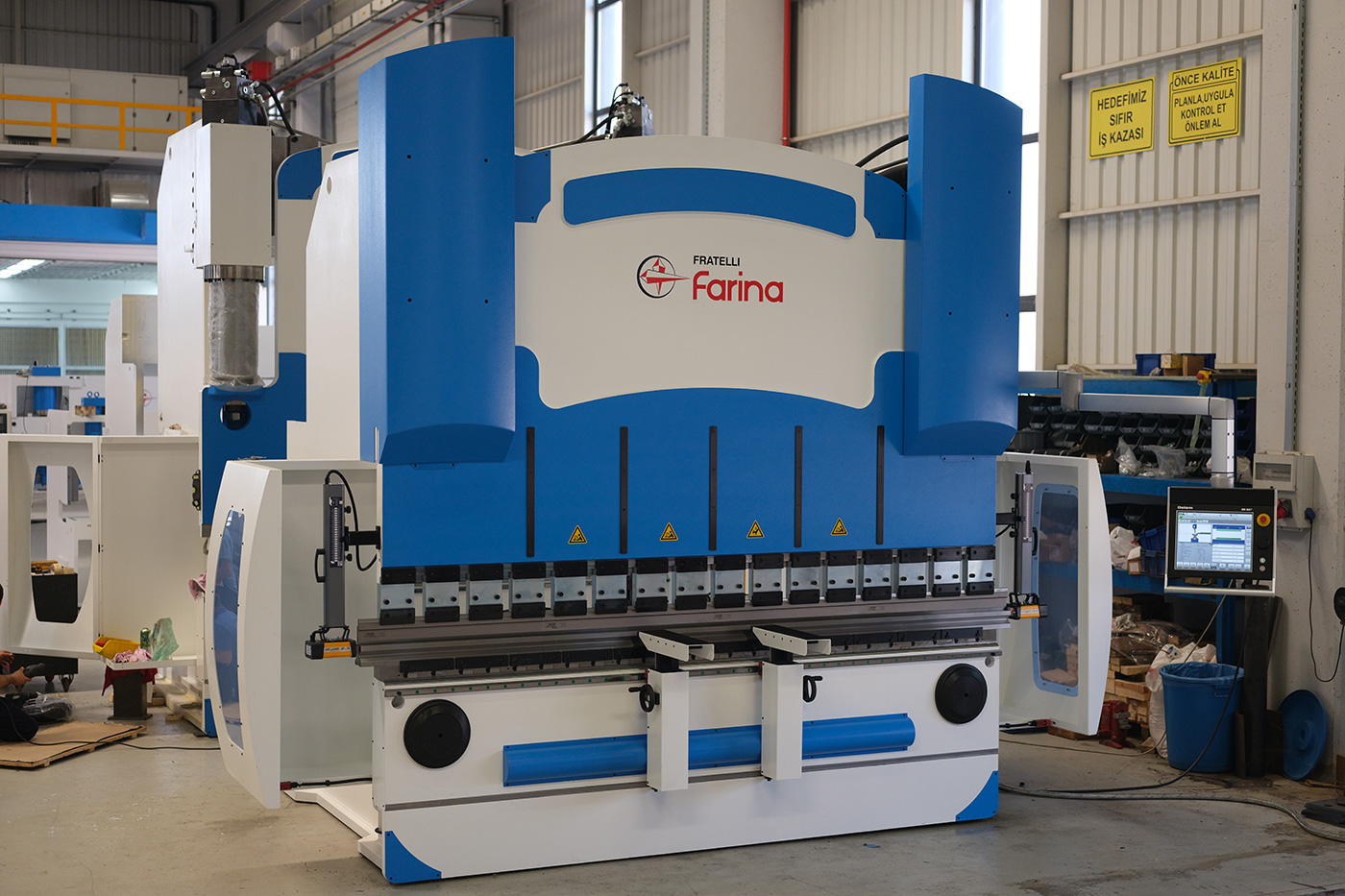

PFO - Farina Pressbrakes

Features

  • Specially engineered frame design for maximum structural integrity and minimum bend deflection.
  • Machine controlled by user-friendly CNC units.
  • Hydraulic compensation of the lower beam for enhanced accuracy.

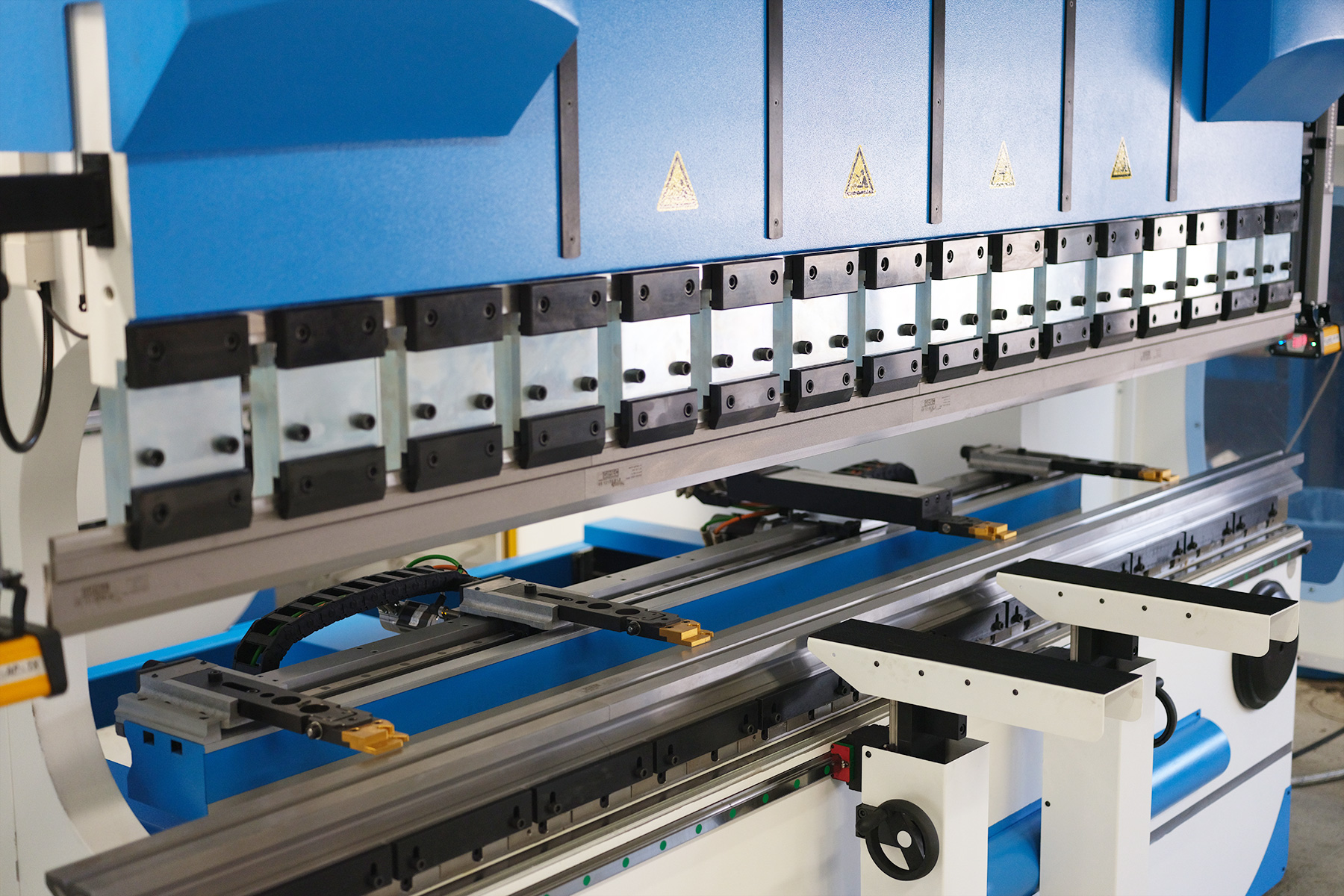

  • Quick release top tool clamping.
  • Pneumatic top and lower tool clamping.
  • Wila-system hydraulic top and lower tool clamping with Wila tooling.
  • Sliding and fully adjustable front arms on linear guides as standard.
  • Automatic and motorised sheet followers by CNC.
  • Start-stop technology for power saving.
  • Online servicing over internet VPN connection.
  • Hydraulic, electrical, mechanical components from globally-known brands with high standards
  • Laser guarding DSP AP or LAZER SAFE

Deflection frame control

  • Bending of sheets of various length without changing the parameters
  • Bending of sheets that have been notched or drilled without changing the parameters
  • Possibility to test bending operations on pieces of reduced sizes, and then carry out the same bending operation on the real pieces without changing the parameters
  • No delay in working time
  • This system is not visible and does not create any obstruction to the bending options
  • No decrease in speed
  • No visible and obstructive measuring equipment

Machine Controls

  • All Farina press brakes are controlled by powerful CNC units recognised for being user-friendly with easy programming and having application flexibility for machine operators.
  • Delem DA 69T – 3D multi axis graphical control
  • Delem DA 69T – 2D multi axis graphical control
  • Software for offline programming
  • Autopol INFOLAB BEND cad/cam bending simulation software

Thickness measurement system

  • Increased precision
  • Totally automated
  • Decrease in waste of material
  • Check of material
  • No delay in bending process
  • No visible and obstructive measuring equipment

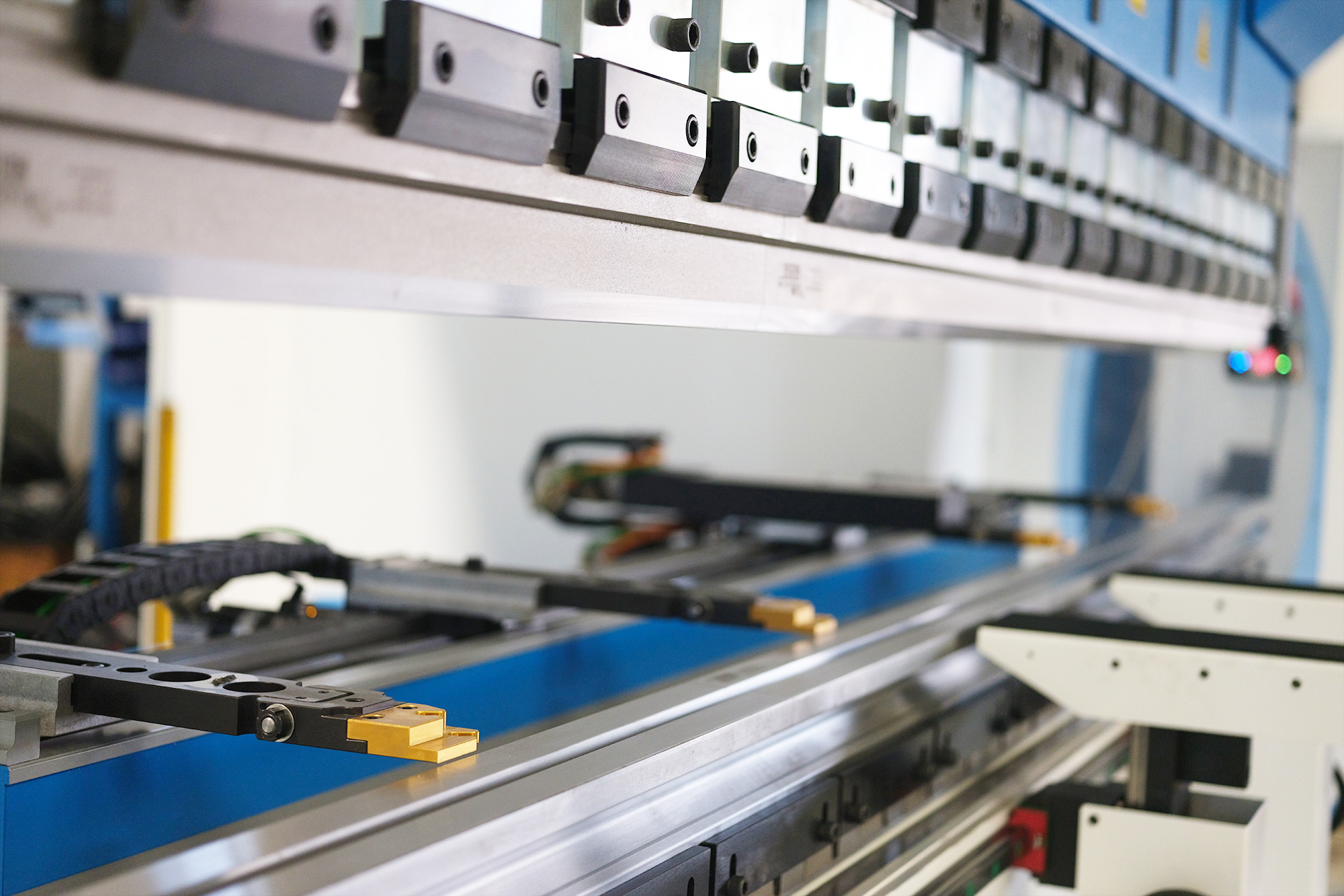

Backgauges

6 axis Tower Backgauges

6-axes modular backgauge with independent fingers X1-R1-Z1/X2-R2-Z2

6 axis Pneumatic Backgauges

X-R-Z1-Z2-X3-X4 6-axes backgauge with pneumatic finger X-R-Z1-Z2-X3-X4

4 axis Backgauges

X-R- Z1-Z2 4-axes backgauge X-R-Z1-Z2

2 axis Backgauges

X-R 2-axes backgauge X-R

TECHNICAL DATA

Bending Force Bending Length Distance Between frames Throath Table RAM distance Cylinders stroke Approach speed Work speed Return Speed Power Approx Weight L W H
MODEL Kn Mm Mm Mm Mm Mm Mm/s Mm/s Mm/s Kg kW Mm Mm Mm
30/835 300 835 700 350 450 250 180 0-10 150 5,5 2500 1450 1400 2550
40/16 400 1670 1450 300 380 200 160 0-10 150 4 3050 2450 1260 2200
40/20 400 2085 1670 3200 2900 1260 2300
65/25 650 2505 2100 380 200 160 0-10 150 7,5 4200 3400 1500 2350
65/30 650 3150 2600 4450 3980 1690 2450
80/30 800 3250 2600 500 400 200 160 0-10 150 11 6950 3980 1750 2740
80/40 800 4100 3600 8400 4980 1750 2740
110/30 1100 3150 2600 445 250 160 0-10 150 11 7800 3990 1750 2800
110/40 1100 4175 3600 10700 4980 1750 3100
130/30 1300 3150 2600 445 250 160 0-10 150 15 10400 3990 1750 2900
130/40 1300 4175 3600 13100 4980 1750 3100
160/30 1600 3150 2600 500 455 250 160 0-10 150 15 12800 3950 1930 2800
160/40 1600 4100 3600 15400 4950 1930 3100
160/60 1600 6100 5600 20000 6950 1930 3450
200/30 2000 3150 2600 525 275 150 0-10 120 18,5 14900 4000 2050 3150
200/40 2000 4100 3600 18500 4950 2050 3500
200/60 2000 6100 5600 25500 6950 2050 3700
250/30 2500 3150 2600 525 275 150 0-10 120 18,5 15200 4000 2150 3100
250/40 2500 4100 3600 25000 4950 2150 3250
250/60 2500 6100 5600 31000 6950 2250 3480
320/40 3200 4100 3600 630 350 120 0-9 100 22 28000 4950 2350 3690
320/60 3200 6100 5600 40400 6950 2480 4050
400/40 4000 4100 3600 630 350 90 0-8 80 30 32000 4950 2480 3700
400/60 4000 6100 5600 41000 6950 2480 3850
400/80 4000 8100 7050 54000 8950 2480 4250
500/40 5000 4100 3600 630 350 90 0-7 70 37 40000 4950 2490 3700
500/60 5000 6100 5500 51000 6950 2490 3850
500/80 5000 8100 7050 65000 8950 2490 4250
650/40 6500 4100 3600 630 350 90 0-7 70 45 48000 4950 2490 3850
650/60 6500 6100 5100 60000 6950 2490 4150
650/80 6500 8100 7050 77000 8950 2490 4450
