CFO - Farina Shears

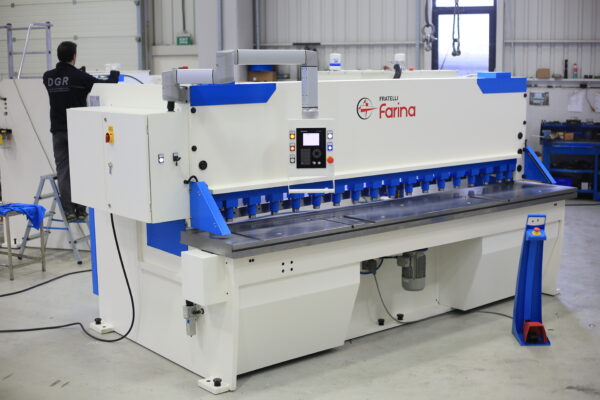

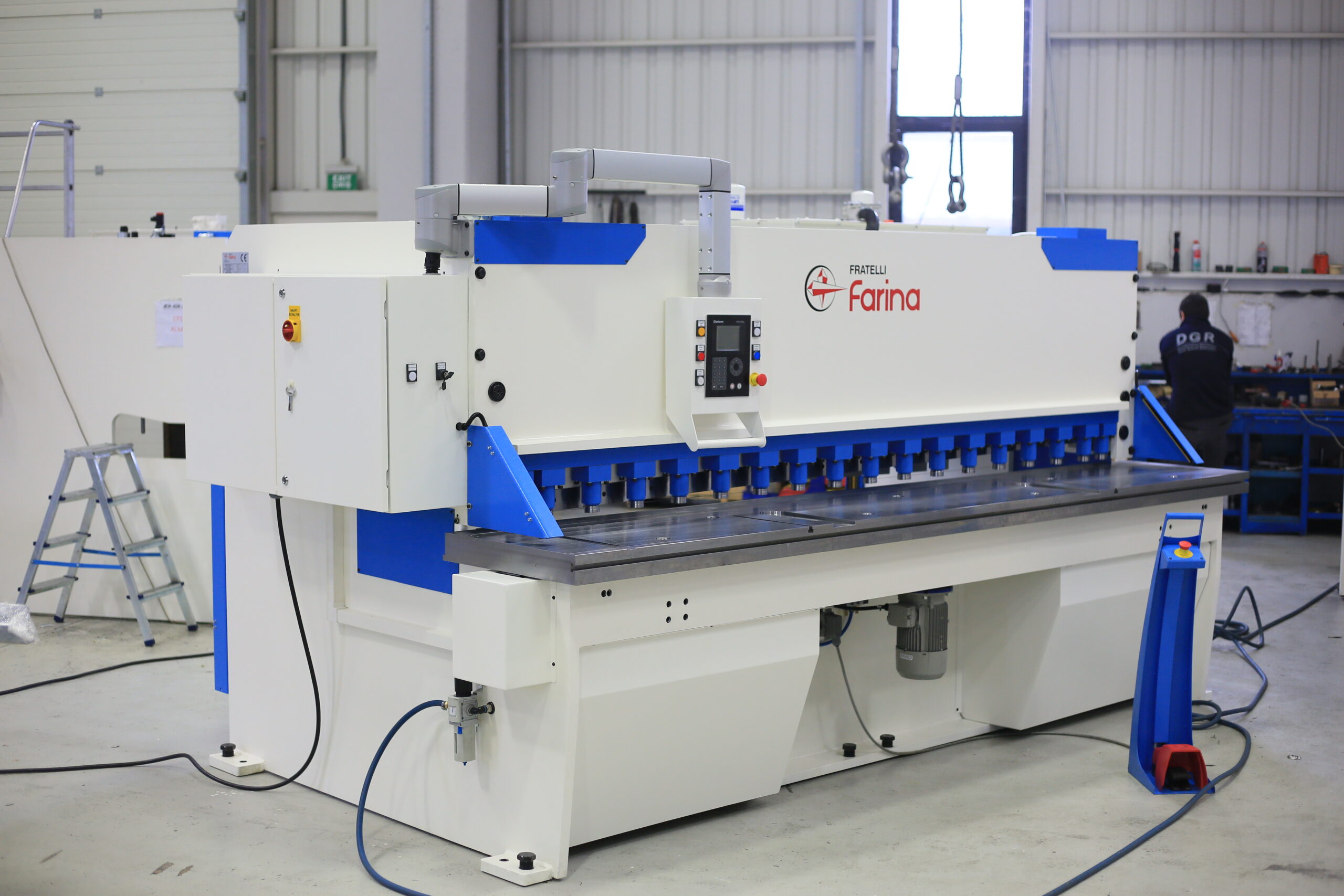

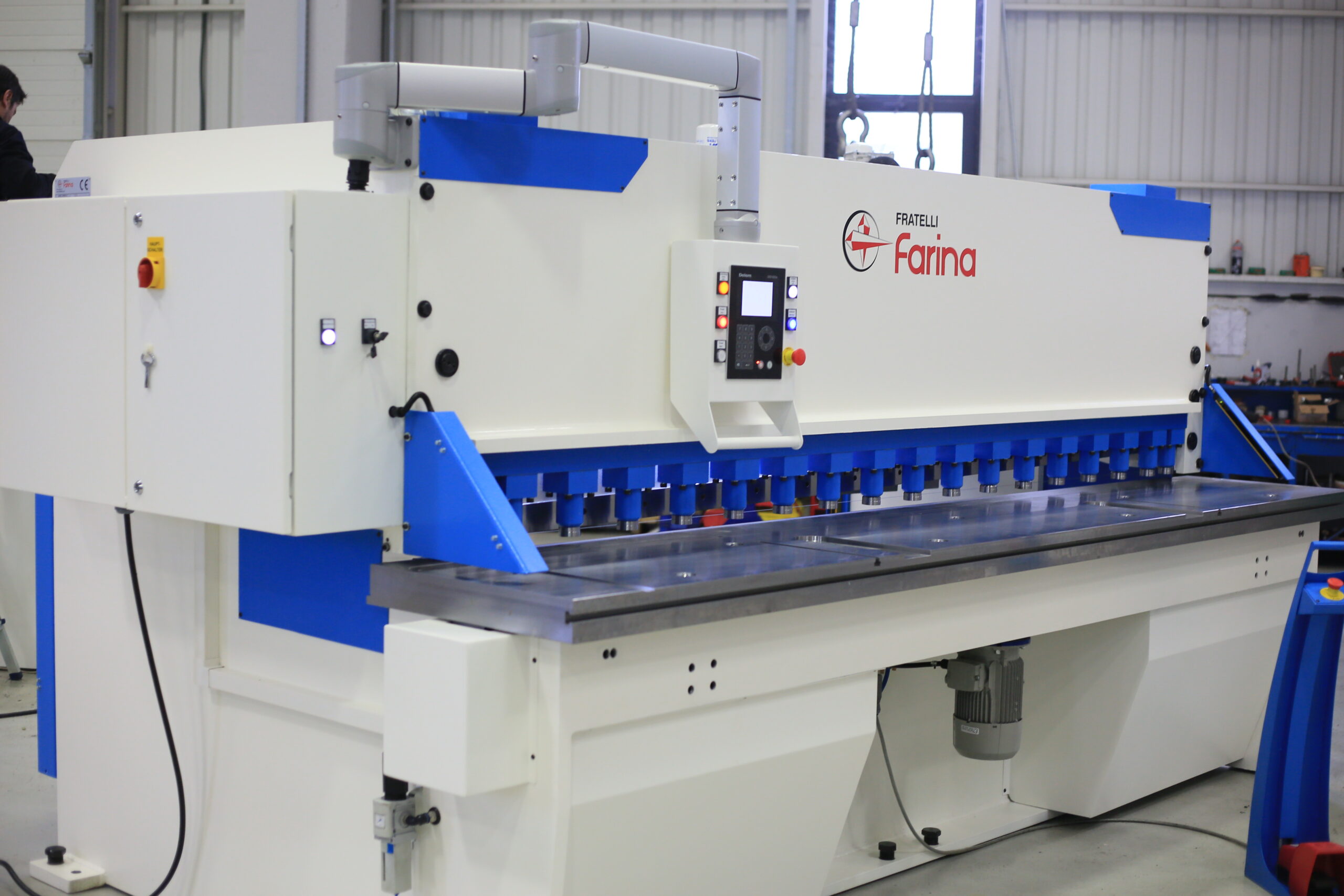

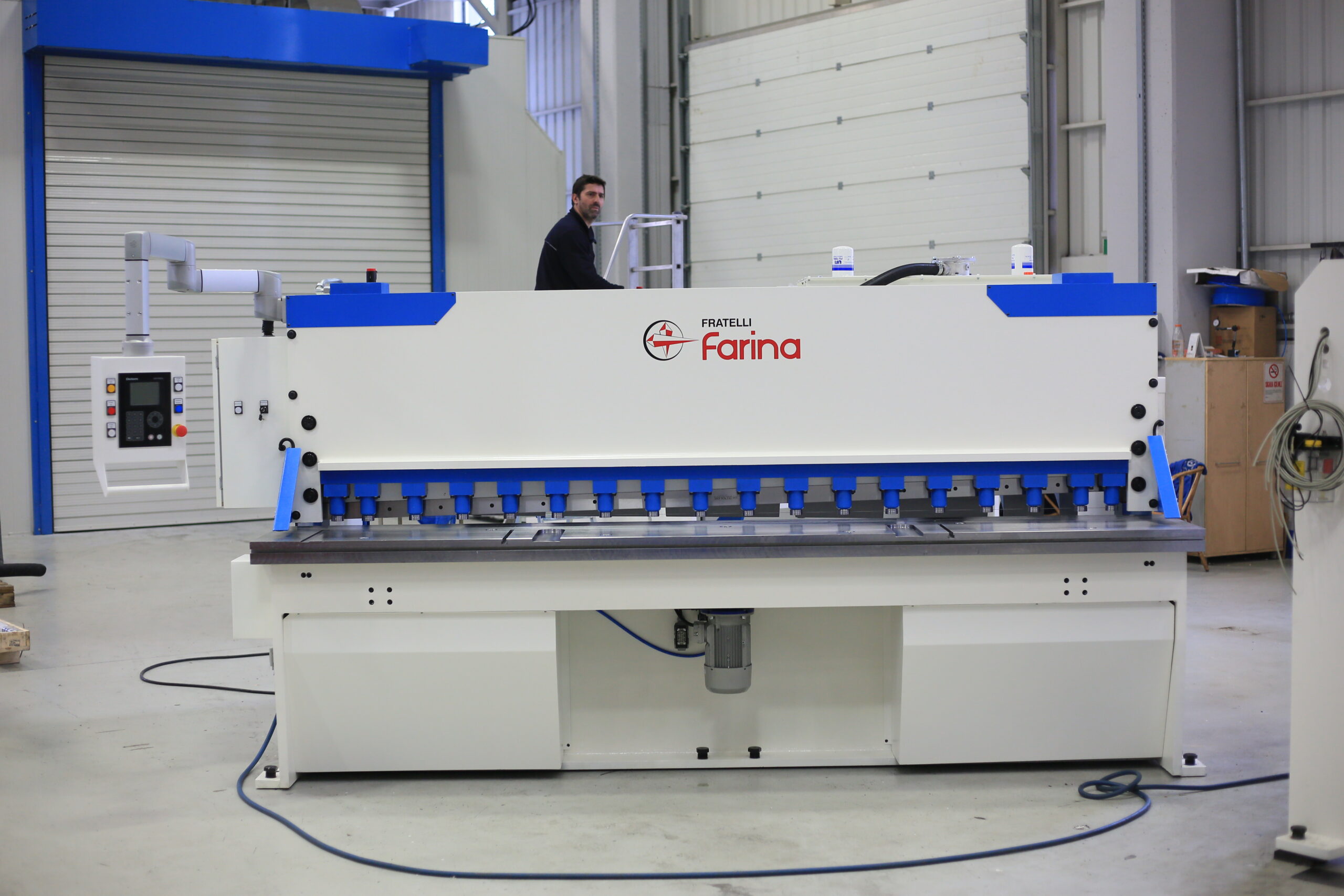

Cutting Machine – Guillotine Shears

  • The machine is based on 3 basic principles: 1. Machine durability 2. Operational reliability 3. Perfect cut All of this is made possible by our very strong frame design and by the mechanical engineering properties that we have built into our machines. As a result, the cutting cyle rates are also notably very high on the Farina shears with the help of the special hydraulics that we are using.
  • Farina shears come with many standard or optional equipment and features that make shearing a very productive cutting process
  • Fratelli Farina factory started with the manufacture of shearing machines more than 40 years ago. The massive experience gained from all those years of technical evolution enabled us to study and realize special solutions for any shear-cutting requirement, reaching to very large thickness capacities.

Features

  • Large and extra-strong frame design for maximum structural integrity and minimum deflection under load.
  • 500 mm large throat (up to 4 meter length).

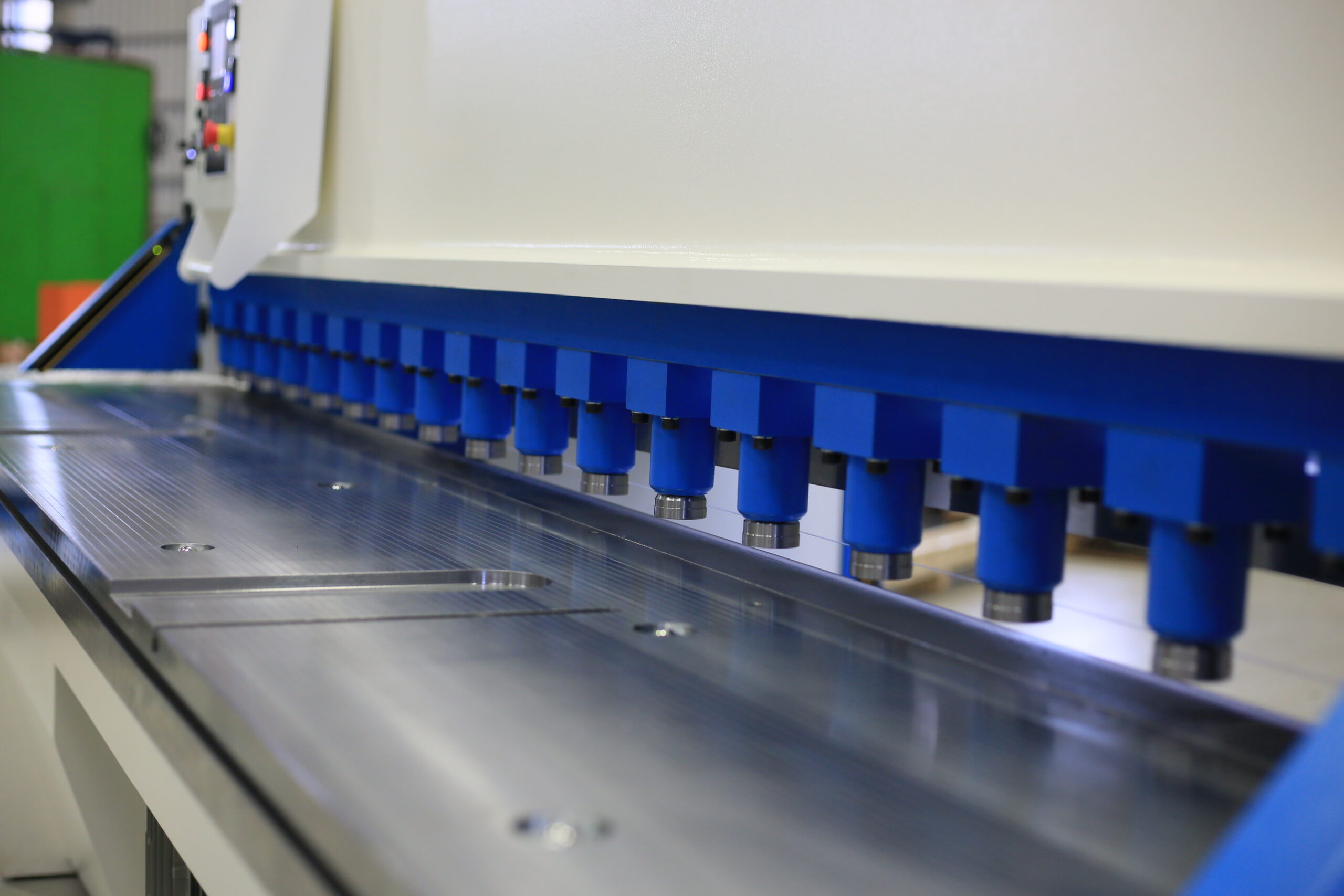

  • Holddown clamps with independent hydraulic circuit.
  • 2-speed motorised backgauge with rapid travel on recirculating screws and with retract function.
  • Swing-away backgauge system.
  • Full steel table with ball transfers for easy sheet handling.
  • Side squaring arm and front support arms.
  • Cutting blades in special-alloyed material.
  • Stainless steel package.

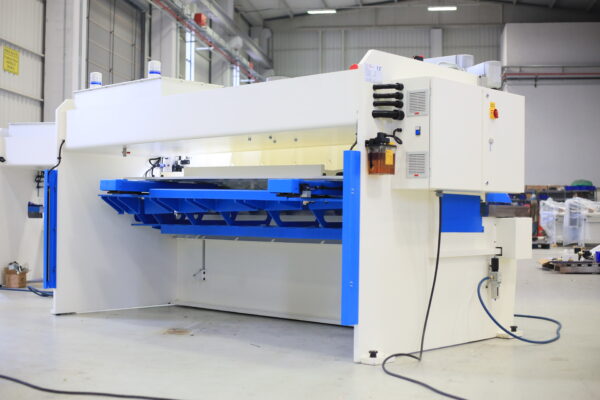

  • Pneumatic or hydraulic sheet sustainers.
  • Sheet sustainer with double pneumatic movement for decent and inclination.
  • Hydraulic anti-twist system at the lower beam.
  • Start-stop technology for power saving.
  • Front and rear light guards for safety.
Machine Controls
On a guillotine shearing machine the following parameters need to be controlled and/or adjusted in a certain way for the shear to operate effectively.
  • Backgauge distance
  • Cutting angle (rake)
  • Blade gap
  • Stroke counter
  • Backgauge retraction
  • Sheet sustainer
  • Cutting length
  • Mode selection: 1. Manual 2. Auto 3. Single
Control units
Farina shears utilize these control units depending on the level of automation required by our customers.

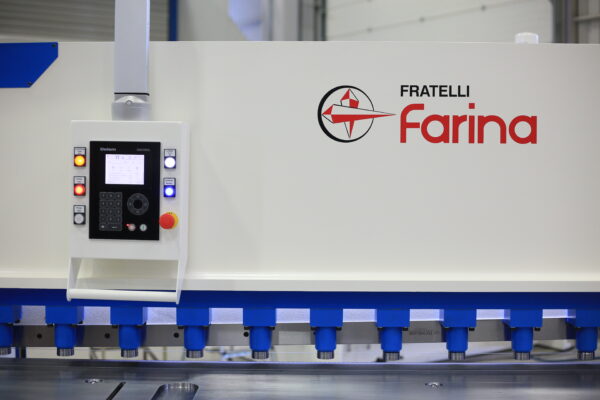

  • Numerical shear control PRG 911

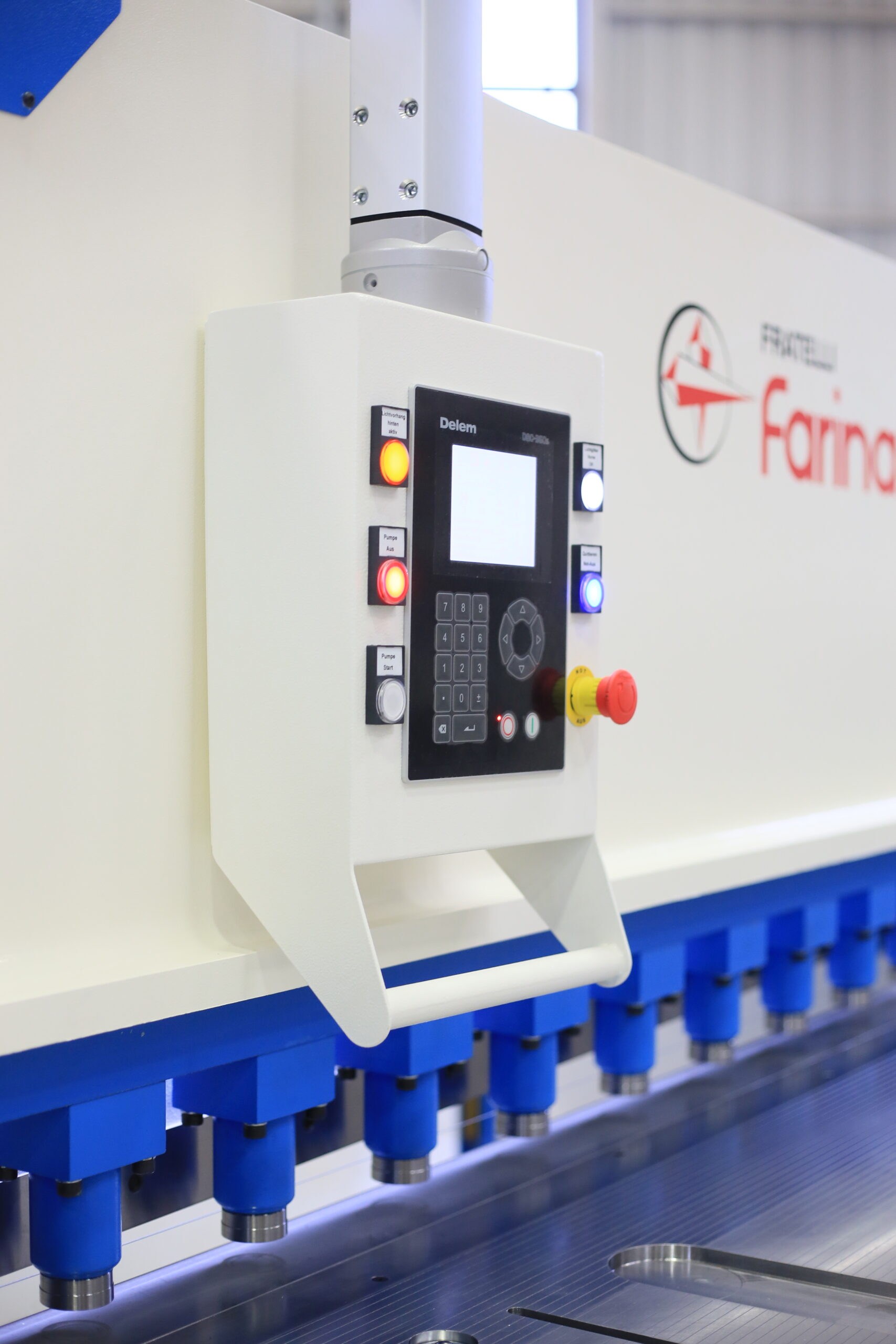

  • Electronic programmable shear control Delem DAC 360s
Model Cutting length Dıstance between side frames Throat Cutting force Max thickness Cutting angle Cycles/min. Backgauge Power Approx Weight L W H
mm mm mm Kn mm (min/max) Mm Kw Kg Mm mm mm
CFO 204   2100   2200   500 200 4 30’-3° 35/60 750 7,5 4900 2750 2000 1900
CFO 206 260 6 33/58 11 5700 2750 2000 1900
CFO 208 360 8 31/52 11 6900 2750 2000 1900
CFO 210 480 10 25/48 18,5 7900 2750 2200 1900
CFO 212 510 12 22/40 22 8800 3850 2200 2300
CFO 214 710 14 20/38 1020 22 10000 2850 2200 2300
CFO 216 860 16 19/37 30 12600 2850 2200 2400
CFO 220 2300 1400 20 15/25 37 15500 2900 2300 2500
CFO 225 1800 25 13/23 45 18000 2900 2400 2500
CFO 230 2400 30 9/18 55 21800 2900 2500 2800
CFO 304   3100         3200               500 200 4 30’-3° 35/60 750 7,5 7000 3600 1800 1900
CFO 306 260 6 33/58 11 8700 3600 1800 1900
CFO 308 360 8 31/52 15 9600 3600 2000 1900
CFO 310 480 10 25/48 18,5 11800 3800 2200 2200
CFO 313 560 13 22/40 1020 22 14000 3800 2200 2400
CFO 316 860 16 19/37 30 17800 3800 2200 2400
CFO 320   3300 1250 20 15/25 45 20800 3900 2400 2600
CFO 325 1800 25 13/23 45 26000 3900 2500 3900
CFO 330 2400 30 9/18 55 31500 3900 2600 3000
CFO 404 4100         4200     500 290 4 30’-2°30’ 33/58   750 11 12900 4650 2000 1900
CFO 406 300 6 33/58 15 13600 4650 2000 1900
CFO 408 380 8 25/48 15 16000 4650 2300 1900
CFO 410 460 10 22/45 18,5 18800 4700 2400 2200
CFO 413 850 13 20/41 22 21600 4700 2400 2300
CFO 416 1100 16 19/37 1020 30 24000 4900 2400 2400
CFO 420   4300 1300 20 16/26 37 28500 4900 2500 2600
CFO 425 1900 25 12/22 45 33000 5000 2700 2850
CFO 430 2300 30 9/16 55 38000 5000 2800 3200
CFO 604               6100               6300               100 290 4               30’-2° 26/47     750 11 20800 6750 2500 2200
CFO 606 300 6 25/45 18,5 23500 6750 2500 2200
CFO 608 380 8 23/40 18,5 28000 6750 2700 2400
CFO 610 460 10 22/38 22 32000 6850 2800 2500
CFO 613 850 13 22/35       1020 30 35000 6850 2900 2600
CFO 616 1100 16 18/30 37 41500 6850 2900 2700
CFO 620 1300 20 15/26 37 47000 6950 3000 2800
CFO 625 1900 25 12/22 45 52000 6950 3100 3000
CFO 630 2300 30 9/15 55 62000 6950 3200 3100
