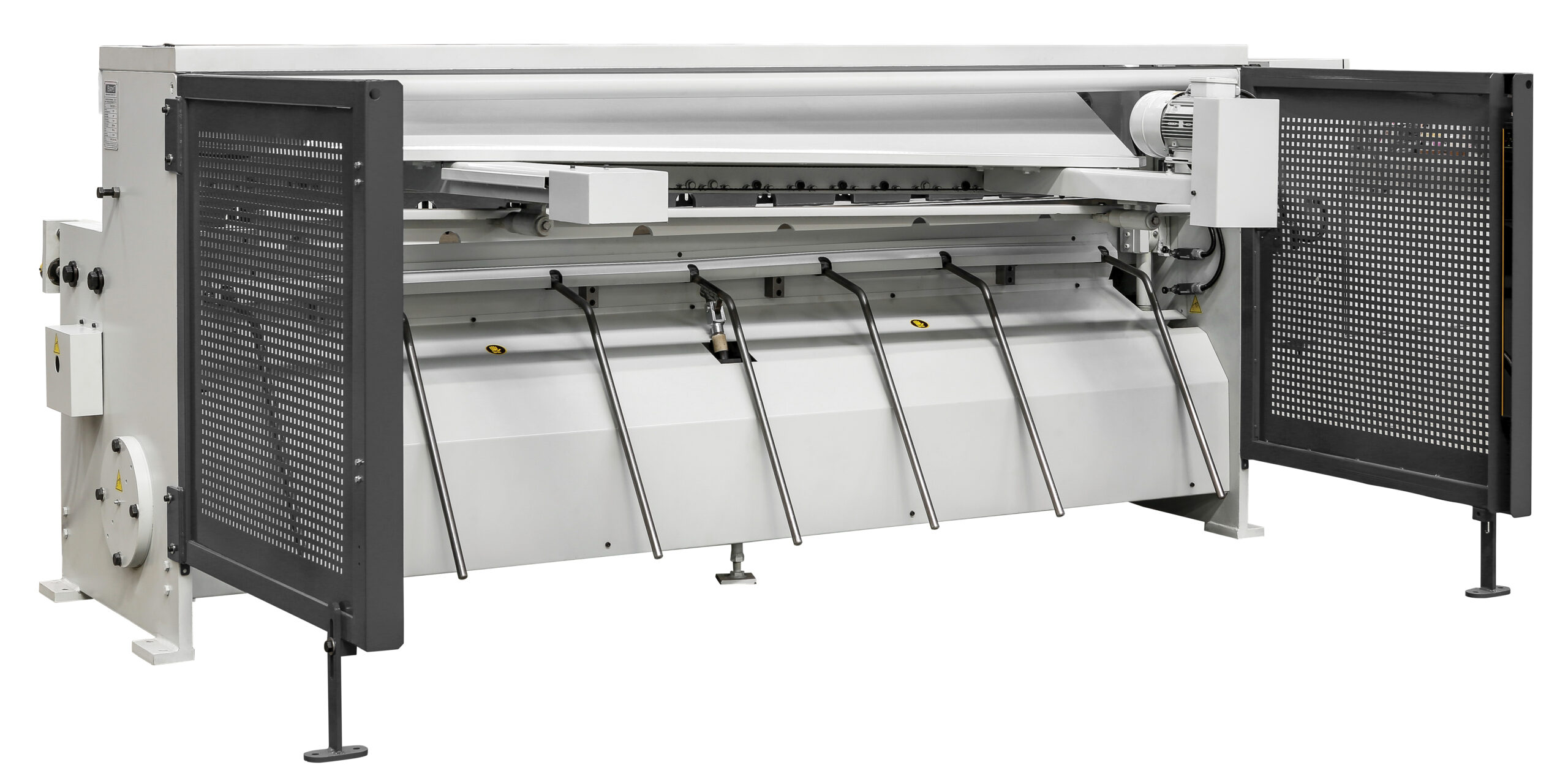

RMS - Mechanical Guillotine Shears
RMS Standards
- All steel-plate construction
- Direct-drive operating mechanism with brake motor

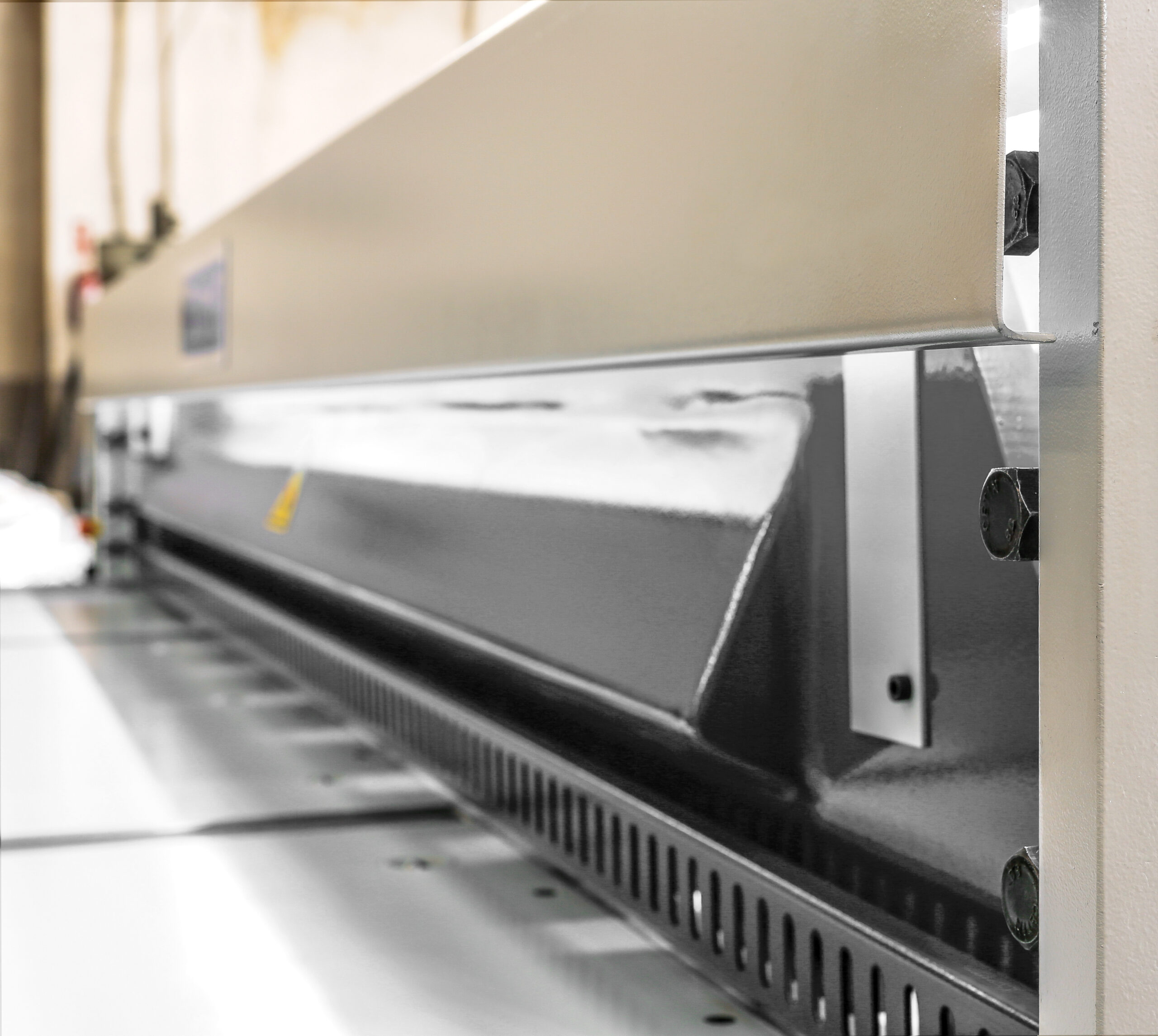

- Special alloyed cutting blades
- 550 mm Motorised handwheel backgauge with ballscrew spindles
Features
- All steel-plate construction
- Direct-drive operating mechanism with brake motor
- Special alloyed cutting blades

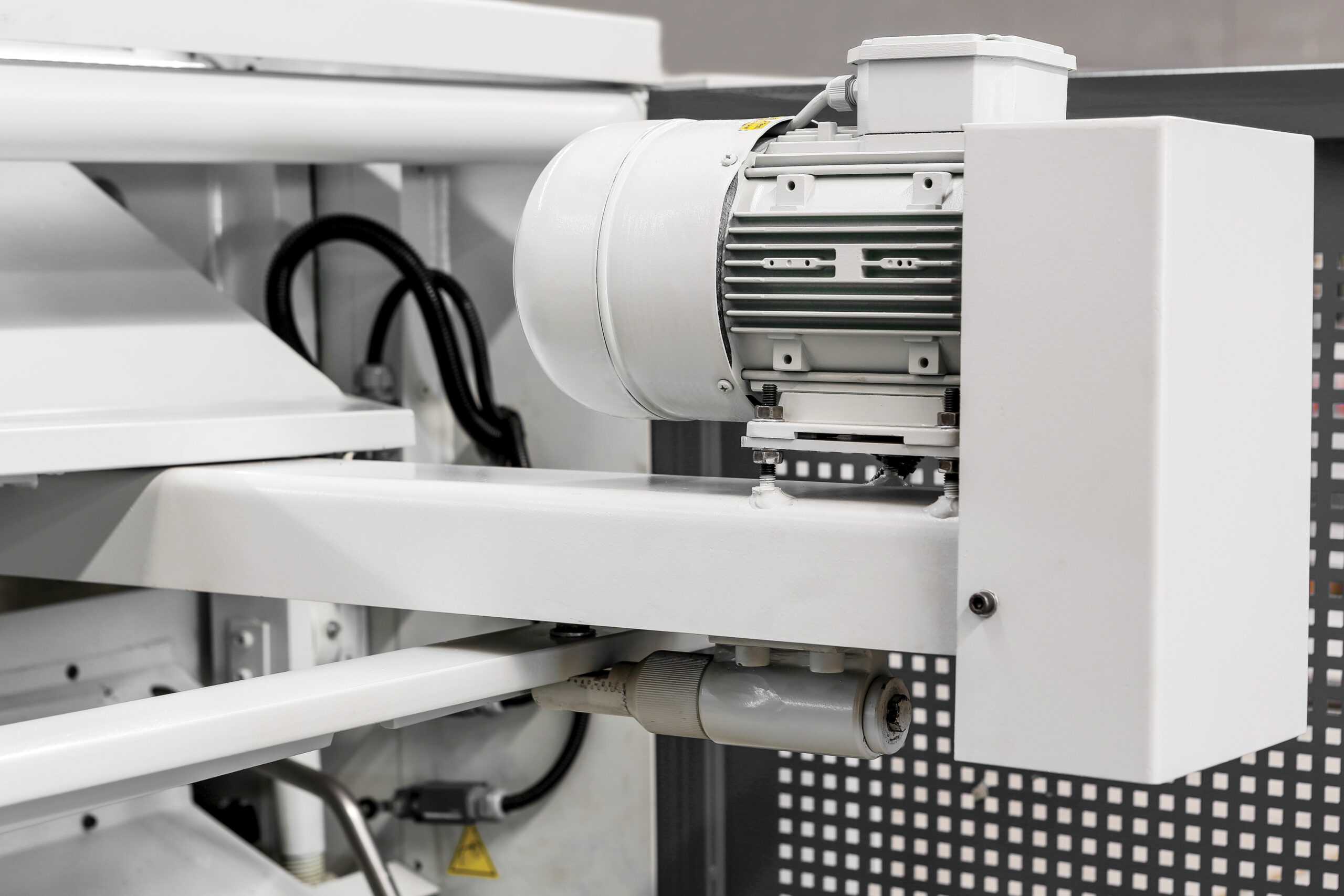

- 550 mm motorised handwheel backgauge with ballscrew spindles

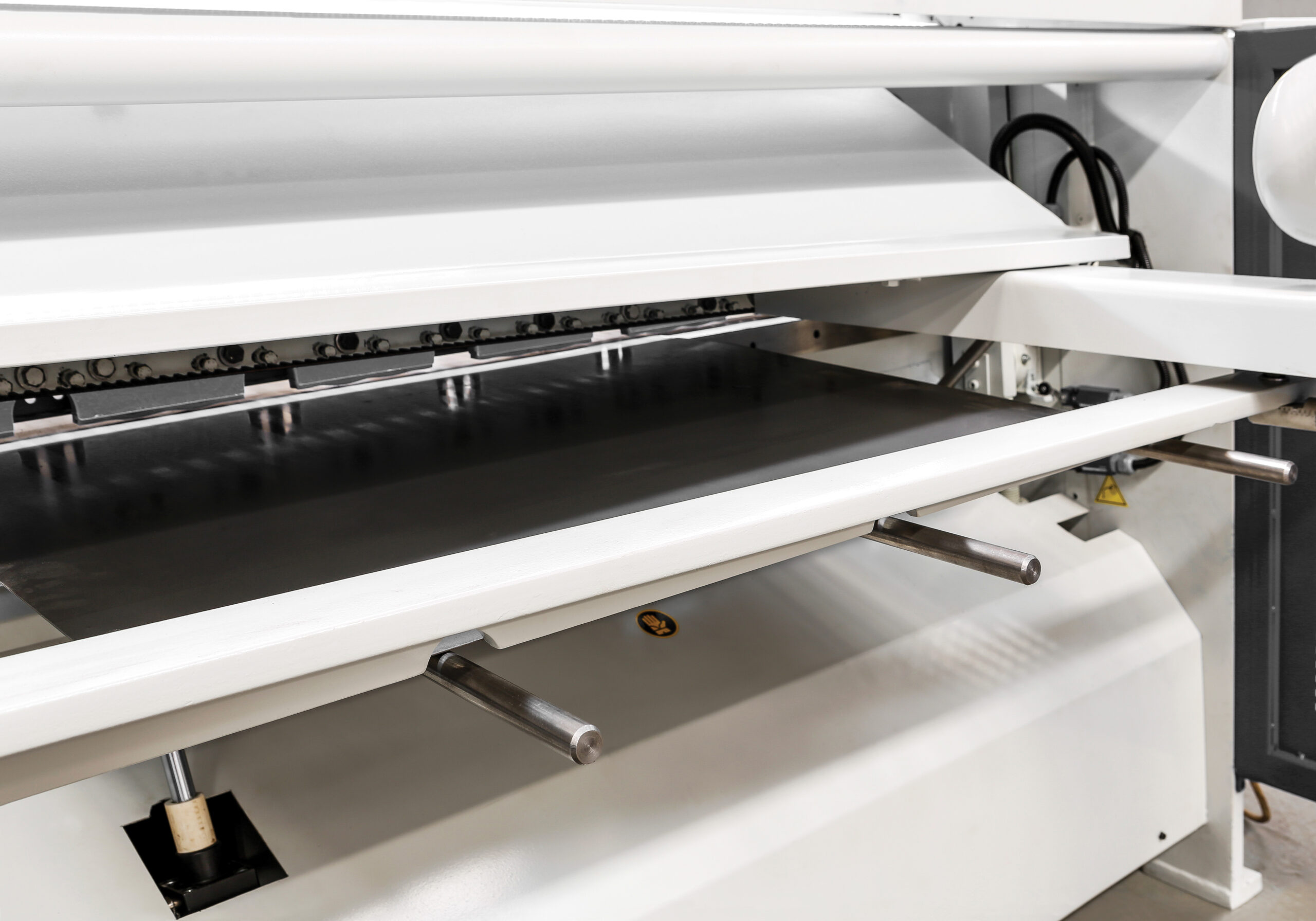

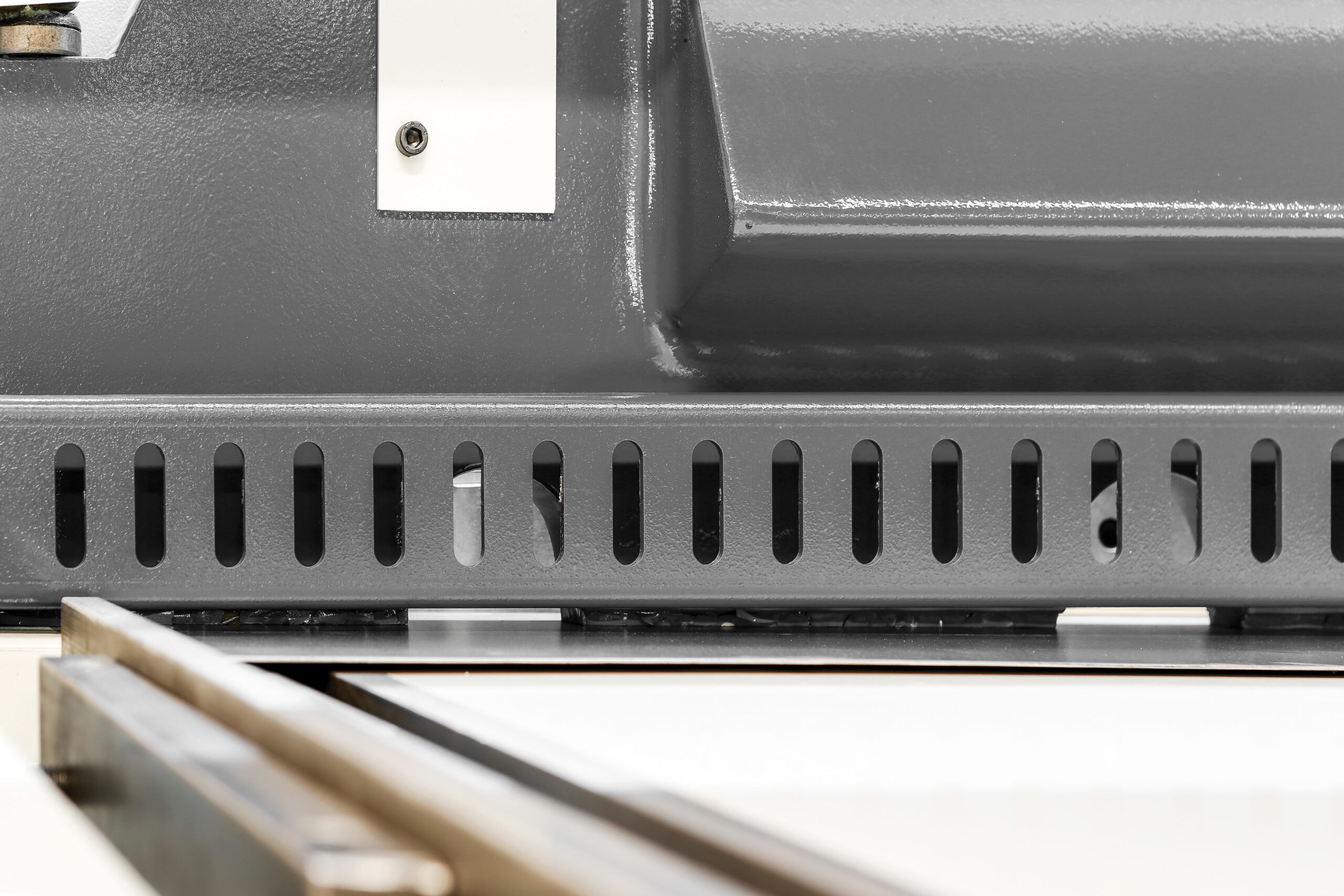

- Mechanical sheet clamping system
- Work table
- Foot pedal operation for single and repetitive cutting cycles

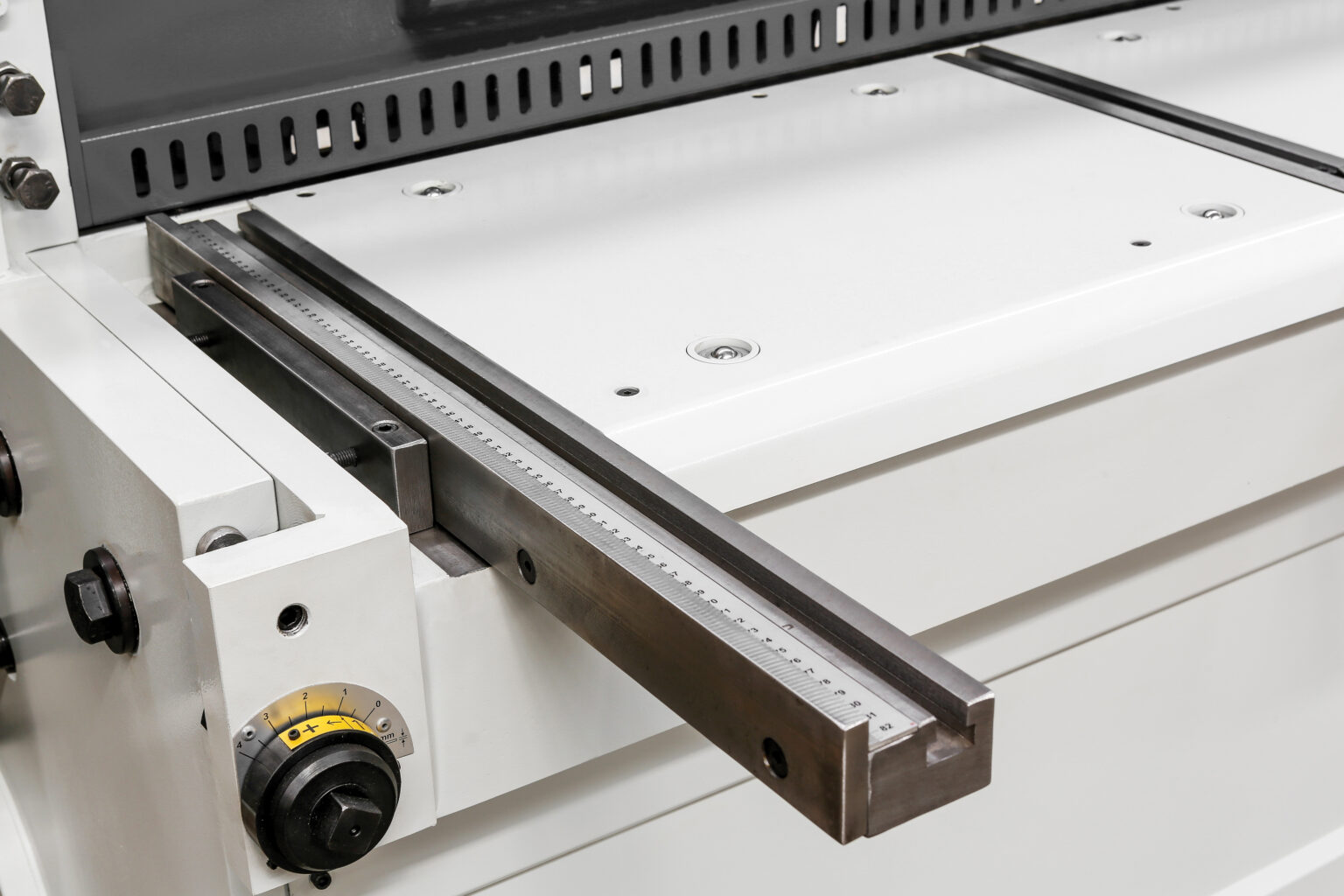

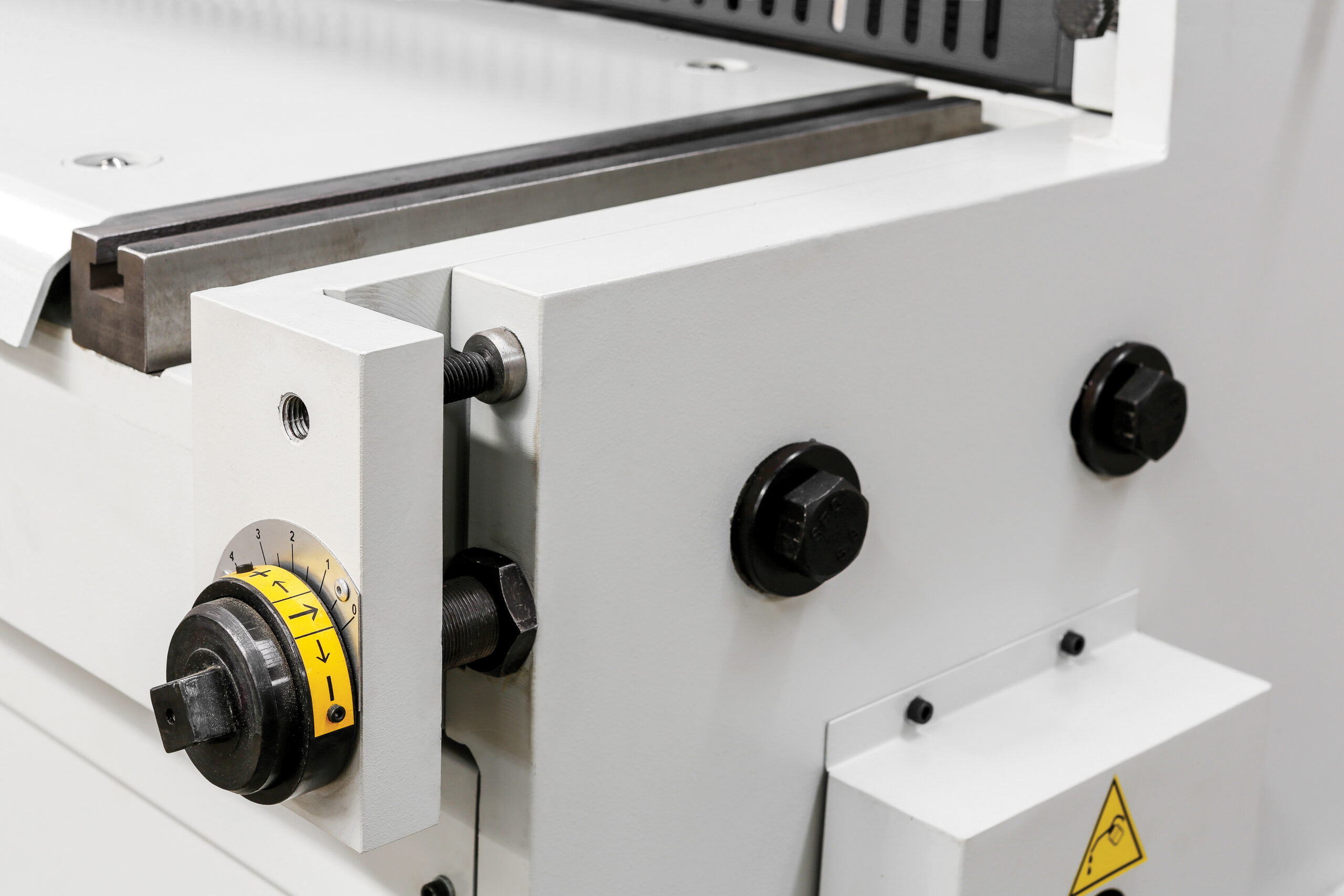

- Squaring arm with metric scale

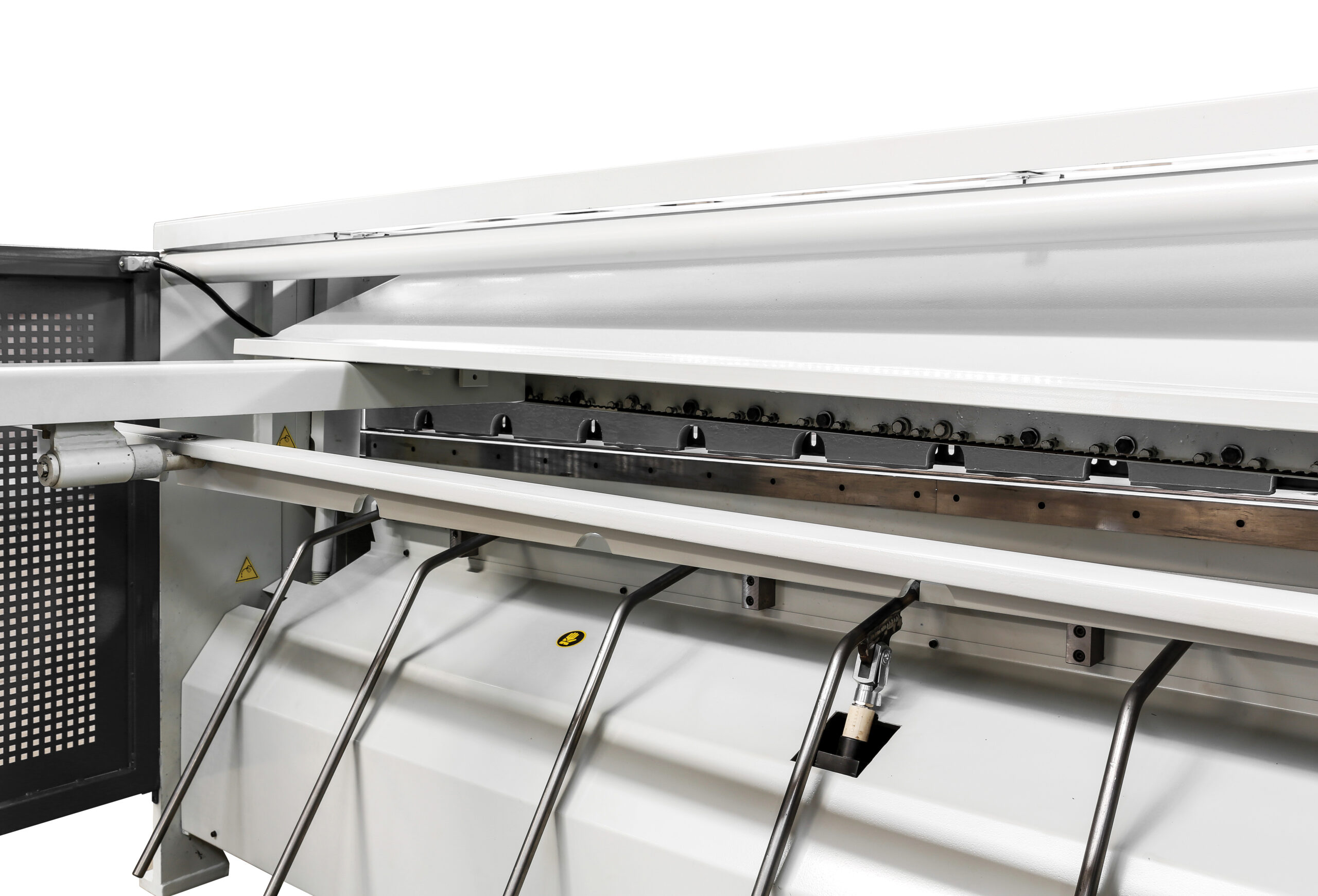

- Extendable front support

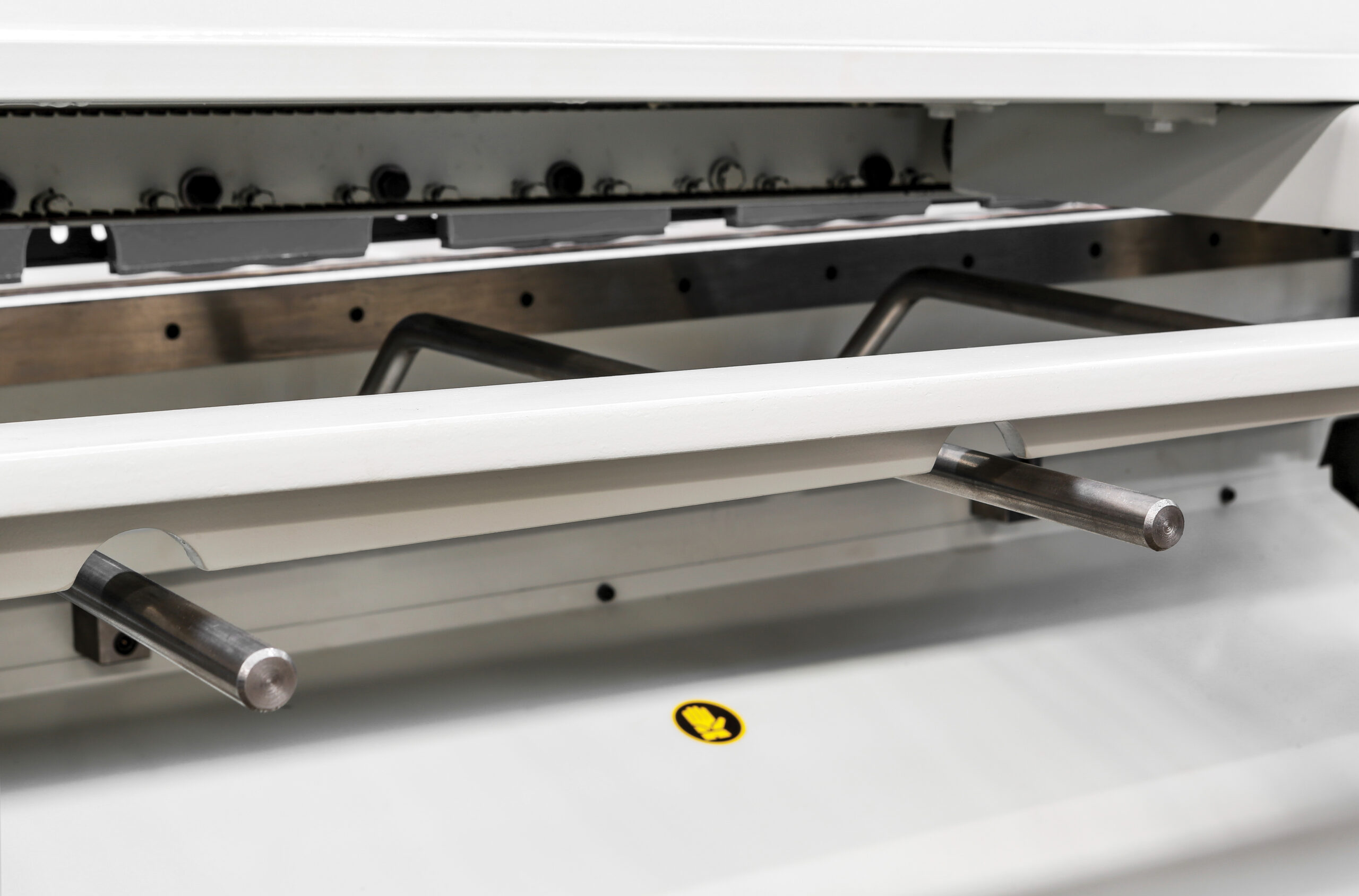

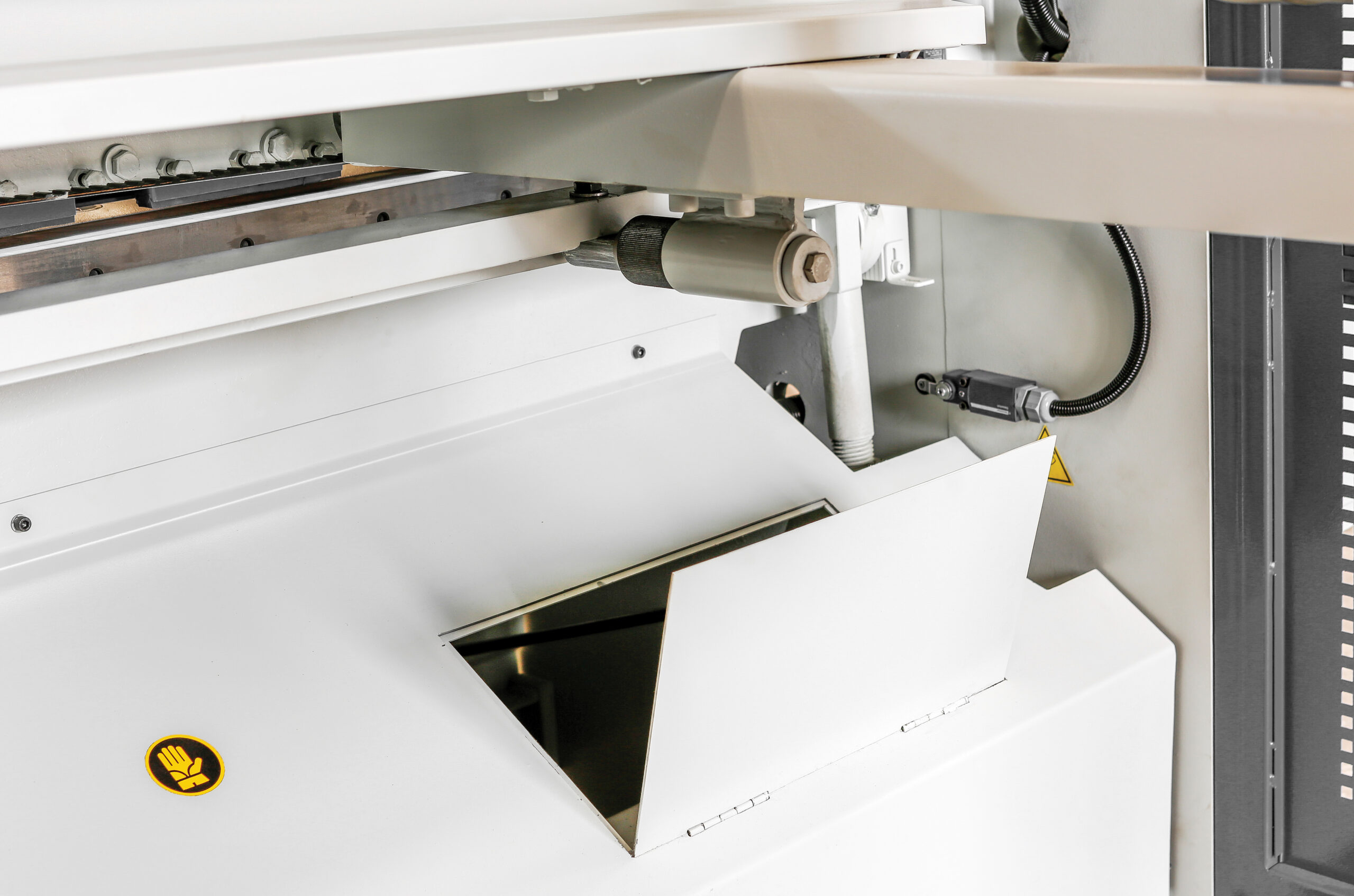

- Front finger guard – protective front and rear cover plates

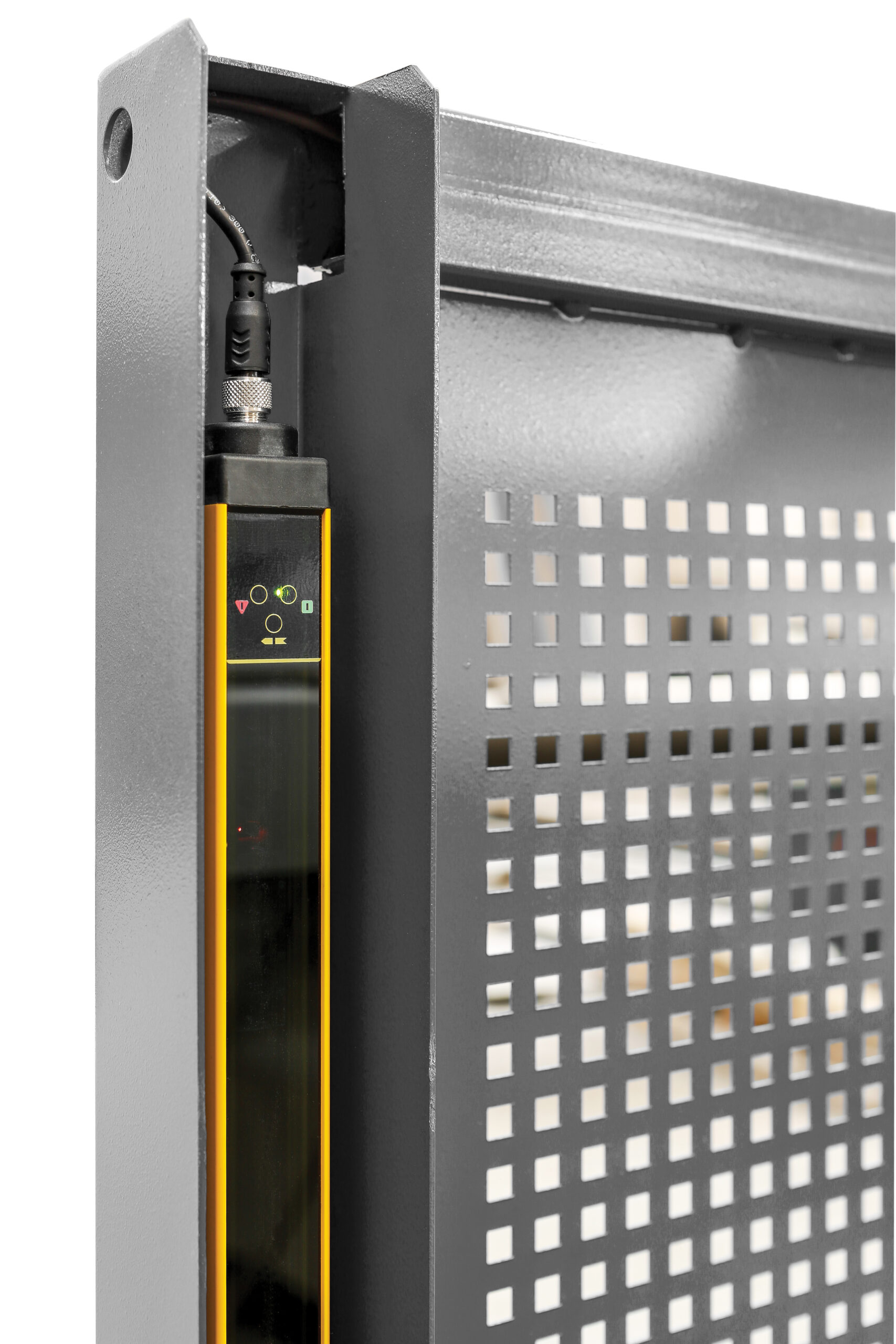

- Rear light guards and full conformity to CE
- User’s Manual in English language, complete with operating and maintenance for instructions, parts list, and electrical circuit drawings
Technical Data
| UNIT | 1360×3 | 1560×4 | 2100×4 | 2560×4 | 3100×3 | 3100×4 | |
| Cutting Length | mm | 1350 | 1540 | 2100 | 2500 | 3050 | 3050 |
| Cutting Capacity St -37 | mm | 3 | 4 | 4 | 4 | 3 | 4 |
| Cutting Angle | degree | 2,2° | 1.8° | 1.8° | 1.8° | 1.5° | 1.5° |
| Machine Length | mm | 2070 | 2250 | 2750 | 3250 | 3910 | 3910 |
| Machine Width | mm | 1940 | 2230 | 2380 | 2380 | 2380 | 2580 |
| Machine Height | mm | 1220 | 3000 | 1360 | 1360 | 1360 | 1560 |
| Machine Weight | kg | 1190 | 2000 | 2650 | 3050 | 3660 | 4350 |
| Stroke Number | stroke/ min. | 27 | 32 | 38 | 38 | 29 | |
| Back gauge Length | mm | 750 | 1000 | 750 | 1000 | 1000 | |
| Motor 380V 50Hz 3 phase | kw | 3 | 7.5 | 7.5 | 7.5 | 7.5 | 10 |
| Motor Brake | nm | 75 | 75 | 75 | 75 | 75 | |
| Reducer-output rpm | rev/min. | 85 | 103 | 103 | 29 |
