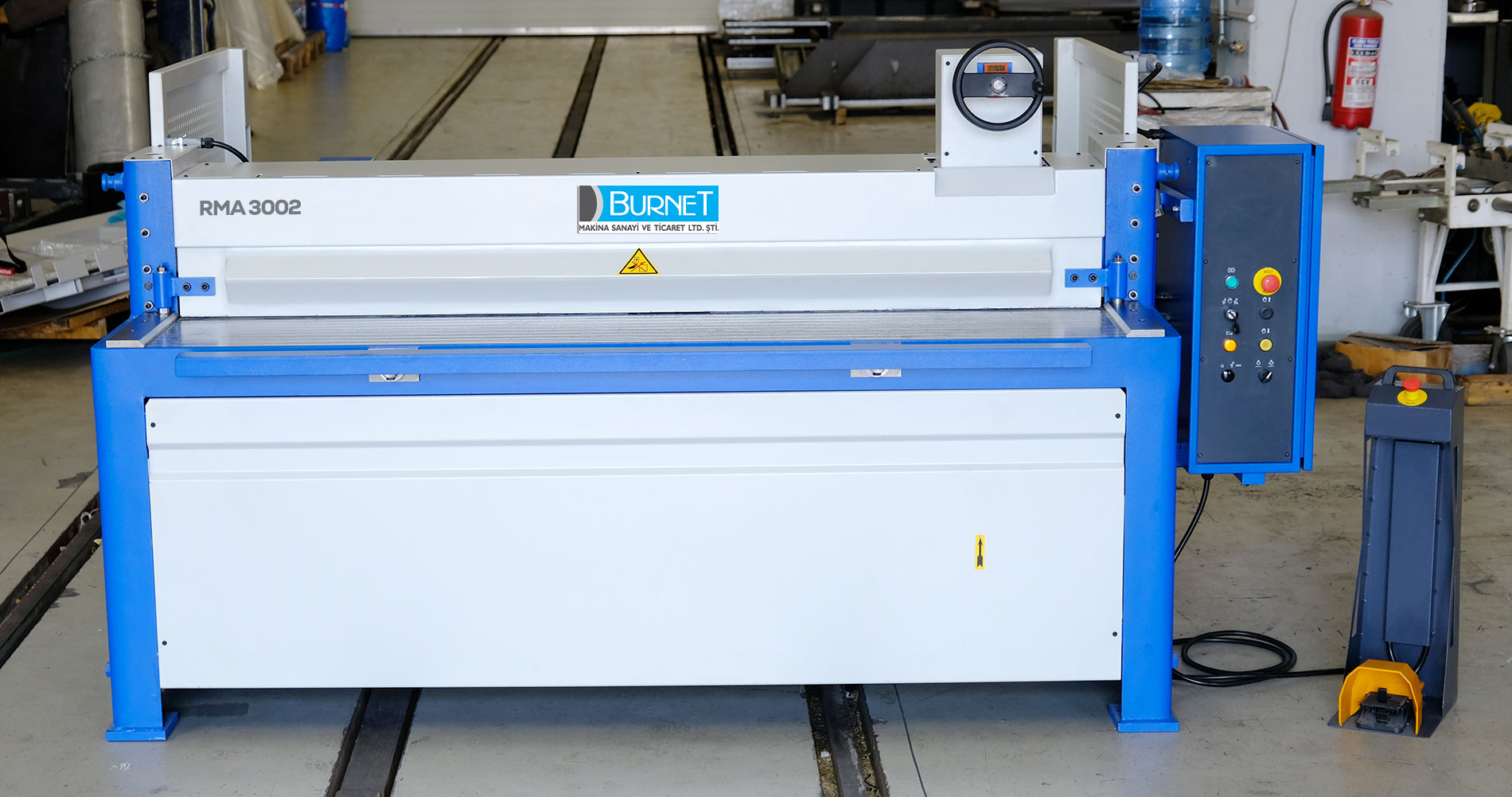

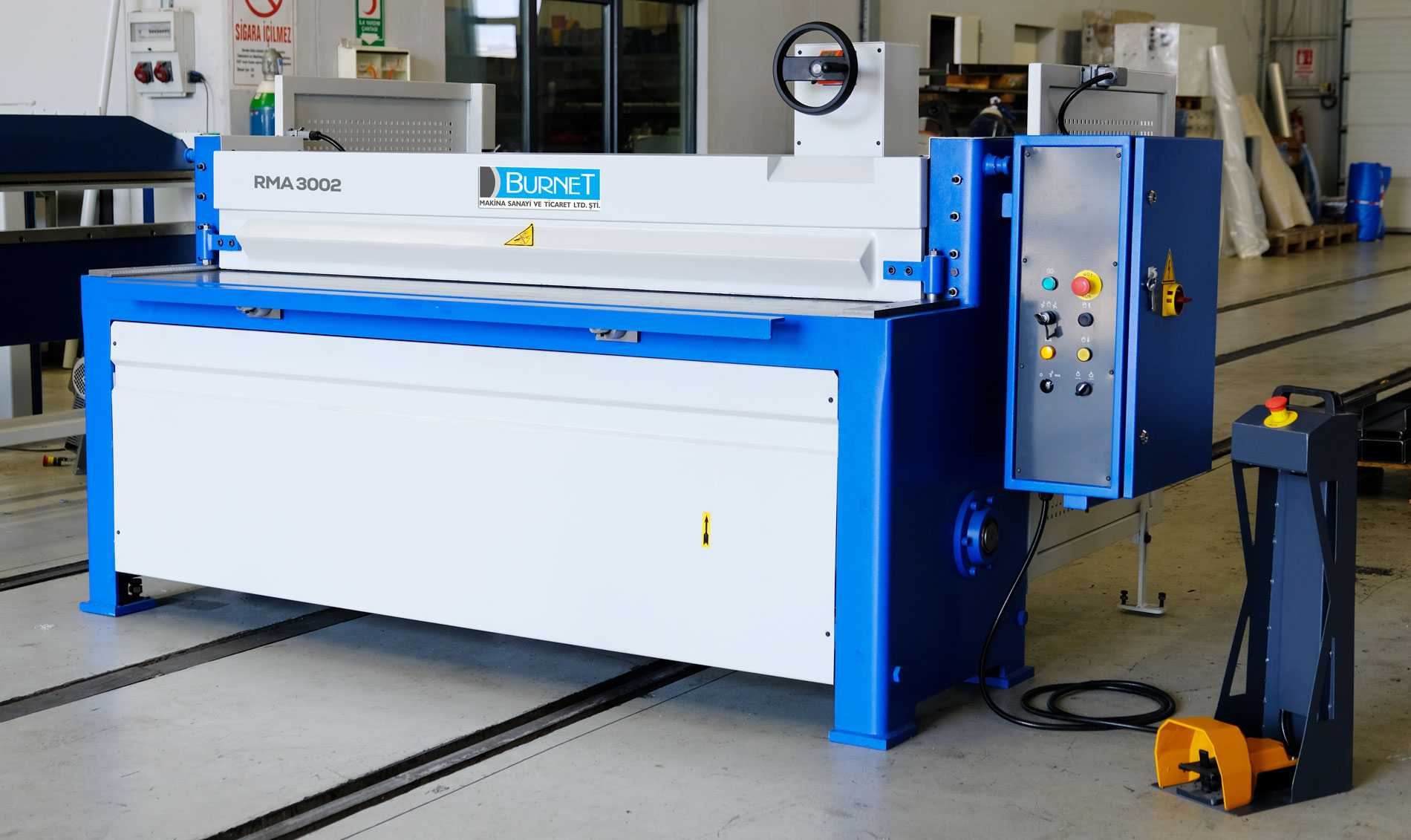

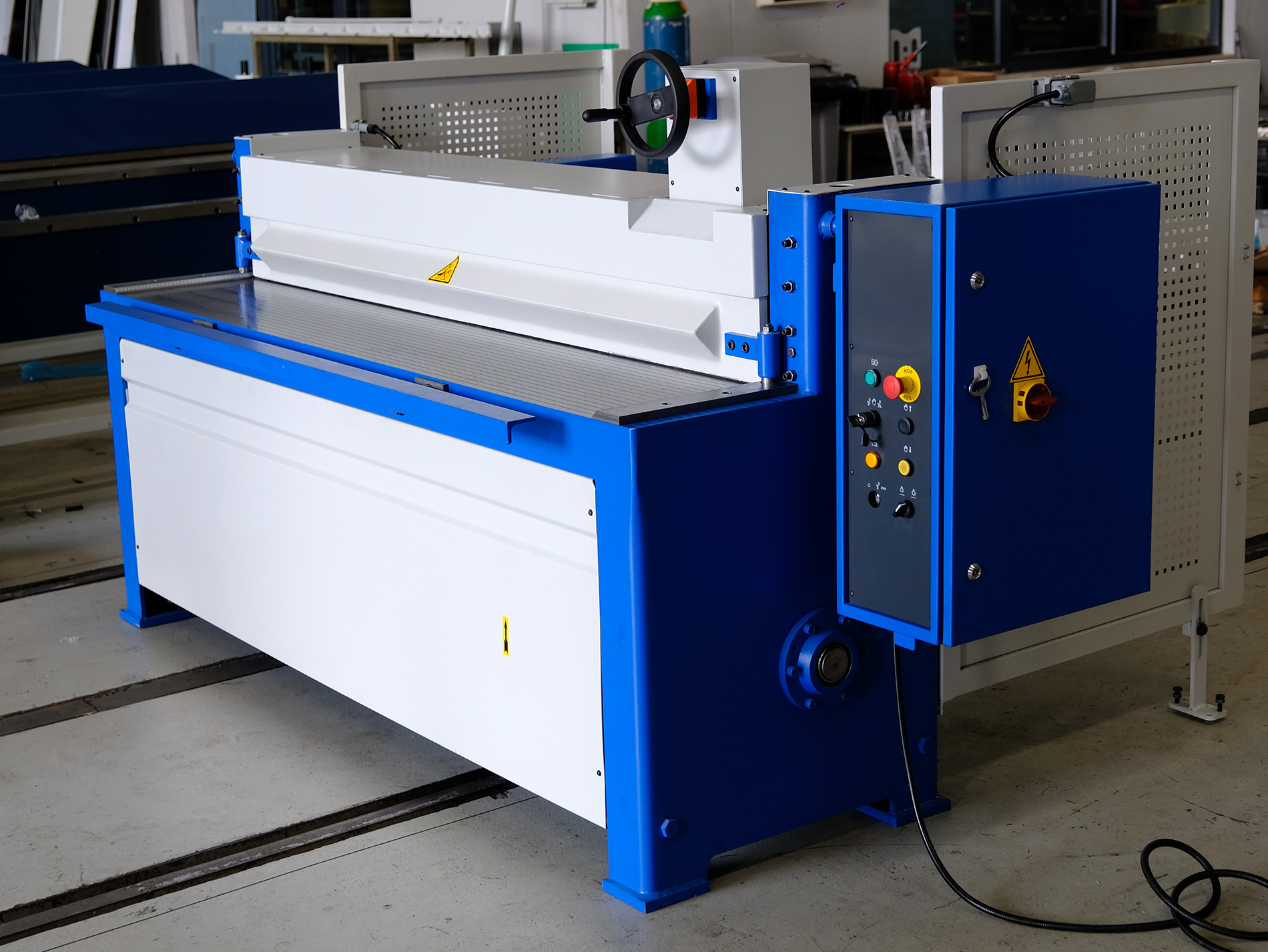

RMA - Mechanical Guillotine Shears
RMA Standards
- All steel-plate construction
- Direct-drive operating mechanism with brake motor
- Special alloyed cutting blades
- 550 mm Manual handwheel backgauge with ballscrew spindles
Features
- All steel-plate construction
- Direct-drive operating mechanism with brake motor
- Special alloyed cutting blades

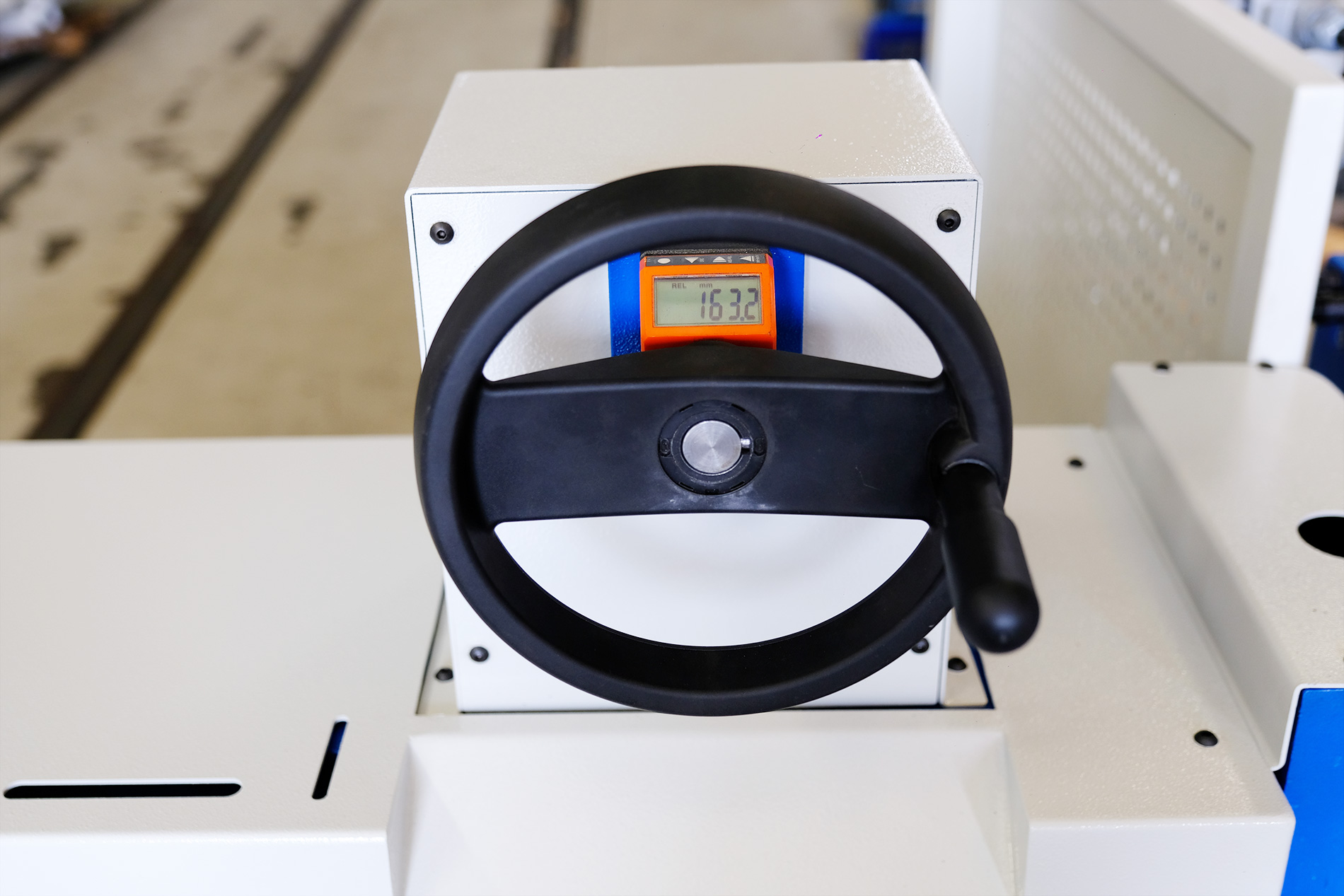

- 550 mm motorised handwheel backgauge with ballscrew spindles
- Mechanical sheet clamping system
- Work table
- Foot pedal operation for single and repetitive cutting cycles
- Squaring arm with metric scale
- Extendable front support

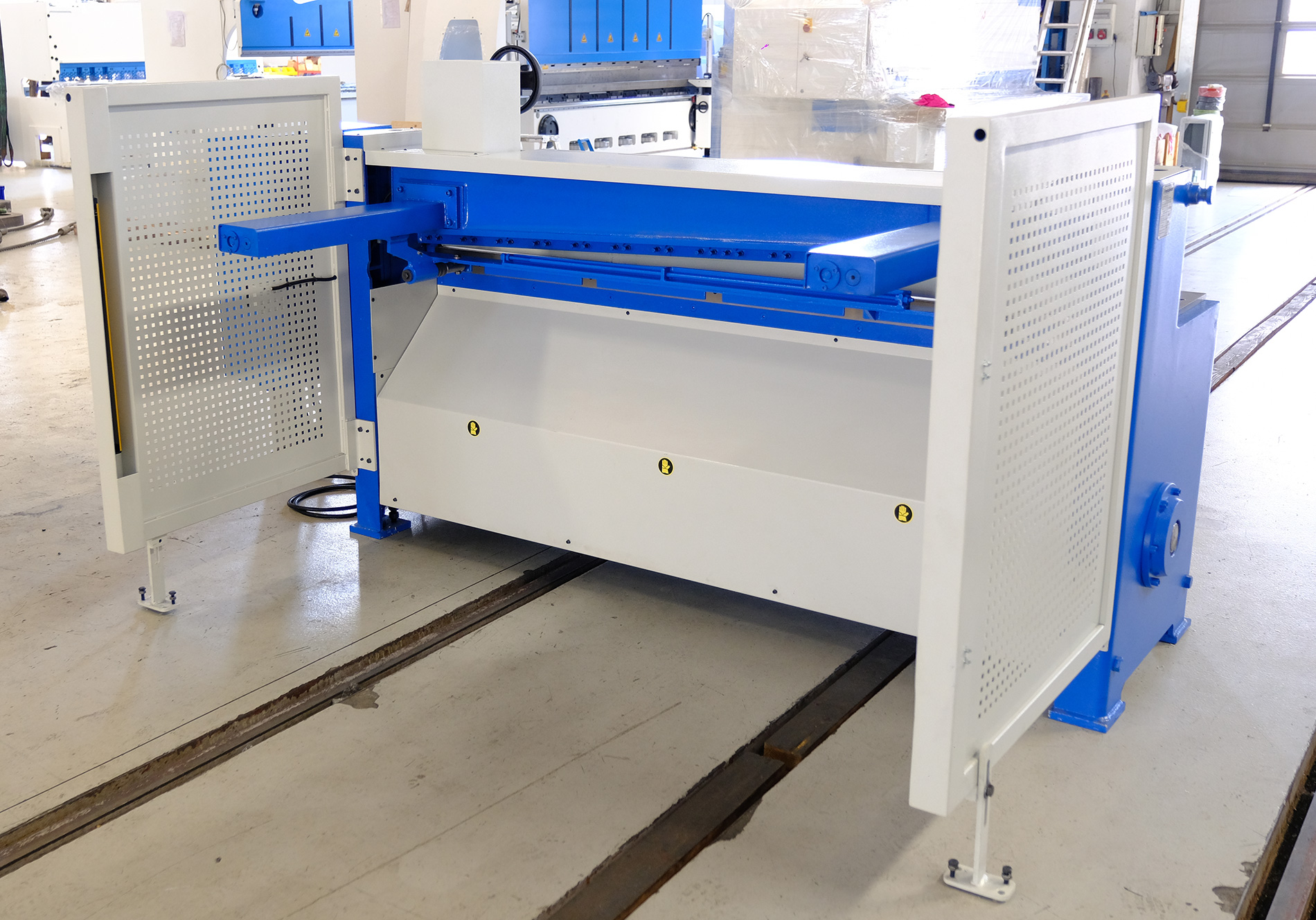

- Front finger guard – protective front and rear cover plates
- Rear light guards and full conformity to CE
- User’s Manual in English language, complete with operating and maintenance for instructions, parts list, and electrical circuit drawings
Technical Data
UNIT | 2100×4 | 3100×3 | |
| Cutting Length | mm | 2100 | 3050 |
| Cutting Capacity St -37 | mm | 4 | 3 |
| Cutting Angle | degree | 1.8° | 1.5° |
| Machine Length | mm | 2750 | 3910 |
| Machine Width | mm | 2380 | 2380 |
| Machine Height | mm | 1360 | 1360 |
| Machine Weight | kg | 2650 | 3660 |
| Stroke Number | stroke/ min. | 32 | 38 |
| Back gauge Length | mm | 1000 | 1000 |
| Motor 380V 50Hz 3 phase | kw | 7.5 | 7.5 |
| Motor Brake | nm | 75 | 75 |
| Reducer-output rpm | rev/min. | 103 |
